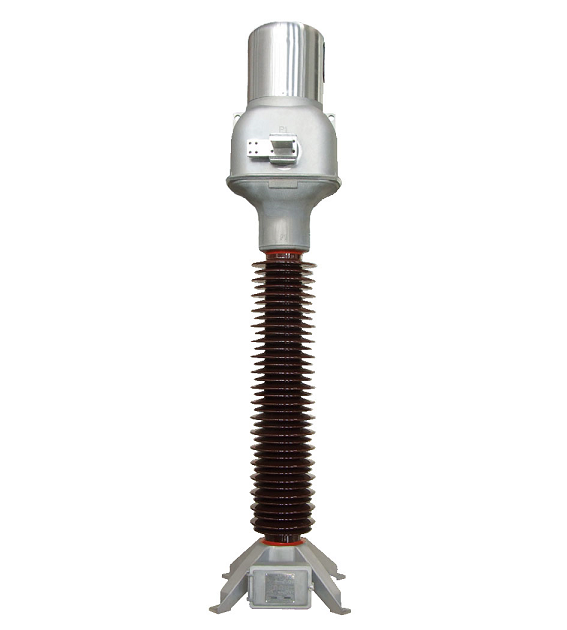

66kV 油浸倒立式電流互感器

我們的產品

產品展示



66kV 油浸倒立式電流互感器

LVB-66 66kV 油浸倒立式電流互感器

所屬分類

倒立油浸電流互感器

關鍵詞:

電流互感器

油浸

戶外

單相

倒立式

油紙絕緣

 國內銷售部咨詢電話： 0086-0411-83146175

產品咨詢

相關產品

資料下載

66kV 油浸倒立式電流互感器

產品描述

產品用途

◆戶外單相油浸倒立式電流互感器，在35～220kV，50或60Hz電力系統作電流、電能測量和繼電保護用。

結構特點

◆本型產品為倒立式油紙絕緣結構。其主絕緣采用高壓電纜紙繞包而成，為改善電場分布和提高絕緣材料利用率，在主絕緣中設置若干個均壓電容屏，經真空干燥后浸于變壓器油中，工頻下無局部放電。絕緣性能穩定、可靠，運行經驗豐富，使用壽命長。

◆一次繞組為貫穿式導電桿結構，從而提高了產品承受短路電流的能力；最大熱穩定電流值達63kA/3s(一次繞組串聯時)

◆二次繞組采用有機材料澆注在鋁制屏蔽罩殼之中，二次側的測量和保護線路不會(huì )因絕緣擊穿而受到電襲擊

◆全自動真空干燥處理系統和先進的真空干燥處理、注油工藝，保證了產品的整體介質損耗因數tanδ小于0.4%

◆外絕緣采用優化設計使內外電場均勻無放電，提供兩種型式供用戶選擇：

1.復合絕緣子

2.高強度瓷套

◆提供用戶接線的二次端子采用菲尼克斯專用接線端子。插、拔、接線等操作更方便、快捷。

◆產品部件之間的連接采用亞弧焊焊接方式，組裝完整體充高壓氮氣檢漏，根本上解決了油浸式產品滲漏油問題

◆產品頂部裝有不銹鋼金屬膨脹器，使產品處于全密封狀態，防止變壓器油及絕緣紙受潮，延長了產品使用壽命，并且在金屬膨脹器上設置有油位視察窗，可以很方便地觀察到油位的變化。

◆本產品所有絕緣件全部為環保材料。

◆產品底部裝有多功能放油閥，使得取油樣、放油更為便利。

◆底座、接線盒等外漏鋼件采用噴塑和熱鍍鋅兩種防腐工藝，美觀且防腐性能好

上一個

110kV 油浸戶外倒立式電流互感器

下一個

35kV 油浸倒立式電流互感器
