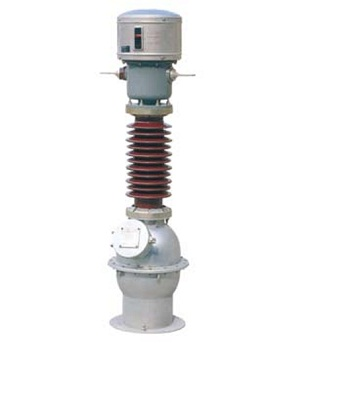

35kV 油浸正立式電流互感器

我們的產品

產品展示



35kV 油浸正立式電流互感器

LB-40.5W3 35kV 油浸正立式電流互感器

所屬分類

正立油浸電流互感器

關鍵詞:

油浸

戶外

單相

電流互感器

正立式

35kV

40.5kV

 國內銷售部咨詢電話： 0086-0411-83146175

產品咨詢

相關產品

資料下載

35kV 油浸正立式電流互感器

產品描述

產品用途

◆本產品是供20~35kV，50或60Hz電力系統作電流、電能測量和繼電保護用的戶外單相油浸正立式電流互感器。

遵循標準

◆IEC 61869-1; IEC 61869-2

◆GB 20840.1; GB 20840.2

使用環境條件

◆環境溫度：-40～+45℃

◆海拔高度：≤1000m（超過1000m,可按用戶要求另行制造）

◆污穢等級：Ⅱ、Ⅲ、Ⅳ

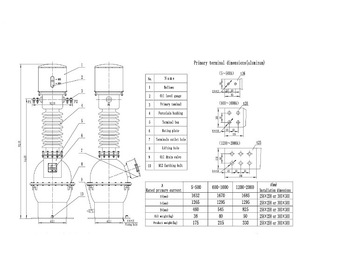

結構特點

◆本型產品為油紙絕緣結構，其主絕緣采用高壓電纜紙繞包而成，經真空干燥后浸于變壓器油中。絕緣性能穩定、可靠，運行經驗豐富，使用壽命長，維護便利。

◆變壓器油的流動性好，利于產品散熱，對于因氣泡、灰塵等引起的局部放電故障具有自熄能力。

◆產品頂部裝有不銹鋼金屬膨脹器，使產品處于全密封狀態，防止變壓器油及絕緣紙受潮，延長了產品使用壽命，并且在金屬膨脹器上設置有油位視察窗，可以很方便地觀察到油位的變化。

◆產品底部裝有多功能放油閥，使得取油樣、放油更為便利。

◆當一次采用串并聯結構時，通過改變儲油柜外部連接片的接線方式可以很方便地實現串并聯換接，從而改變電流比。

◆本產品所有絕緣件全部為環保材料。

◆二次接線板為環氧樹脂澆注結構，密封性能更加可靠。

◆產品底座等外漏鋼件采用噴塑和熱鍍鋅兩種防腐工藝，美觀且防腐性能好。

◆緊固件、銘牌等均為不銹鋼。
