220kV SF6氣體電壓互感器

我們的產品

產品展示



220kV SF6氣體電壓互感器

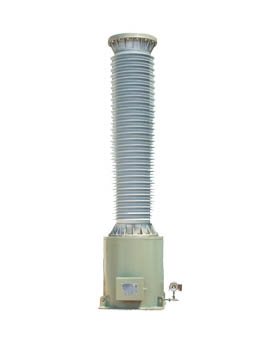

JDQX-220W3 220kV SF6氣體電壓互感器

所屬分類

SF6氣體電壓互感器

 國內銷售部咨詢電話： 0086-0411-83146175

產品咨詢

相關產品

資料下載

220kV SF6氣體電壓互感器

產品描述

產品用途

◆戶外單相SF6電磁式電壓互感器，在35～220kV，50或60Hz電力系統作電壓、電能測量和繼電保護用。

遵循標準

◆IEC 61869-1; IEC 61869-3

◆GB 20840.1; GB 20840.3

使用環境條件

◆環境溫度：-30～+45℃

◆海拔高度：≤1000m（超過1000m,可按用戶要求另行制造）

◆污穢等級：Ⅱ、Ⅲ、Ⅳ

結構特點

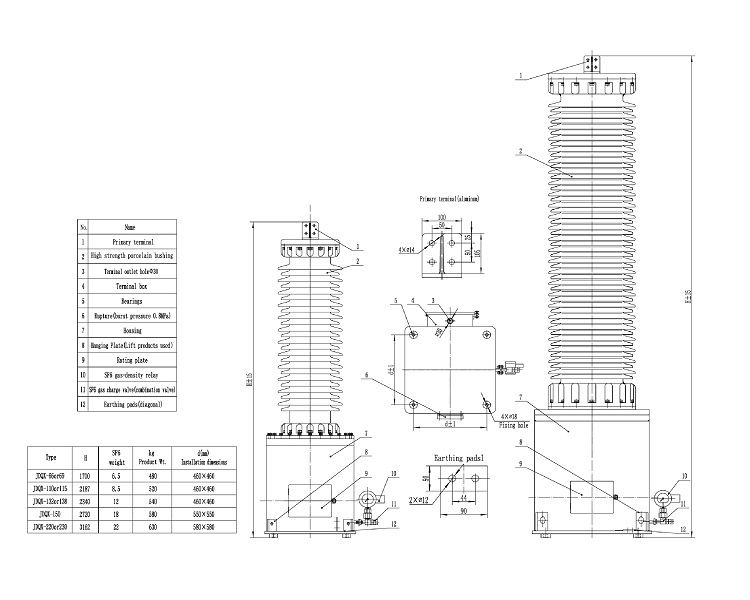

◆產品采用箱式結構，內裝有器身，中部是硅橡膠復合絕緣套管或高強度瓷套管可選，產品頂部設有一次接線端子。

◆產品箱體側裝有壓力釋放裝置，其爆破（釋放壓力）為0.8MPa，無油，無爆炸危險，無維護。

◆器身置于箱體內部，菱格聚酯薄膜和SF6氣體組成的復合絕緣作為層間絕緣，絕緣強度高，SF6氣體的絕緣性能穩定可靠，無老化之憂，具有絕緣自恢復功能。

◆底座上裝有密度表，可顯示互感器內部的氣體壓力（顯示值自動轉化為20℃時的內部氣體壓力）及密度，當互感器內部壓力降到報警壓力時提供信號，要求補氣。

◆外絕緣采用優化設計使內外電場均勻無放電，提供兩種型式供用戶選擇：

1.復合絕緣子

2.高強度瓷套

◆密封膠圈采用SF6氣體專用材料，適用于高低溫變化及環境溫度嚴酷的地區，年泄露率小于0.5%。

◆本產品采用飽和磁密較高的導磁材料，先進的工藝及精良的絕緣設計使產品在一定電壓下呈容性。

◆本產品所有絕緣件全部為環保材料。

◆二次接線板采用環氧樹脂澆注結構，密封性能更加可靠。

◆產品底座等外漏鋼件采用噴塑和熱鍍鋅兩種防腐工藝，美觀且防腐性能好。

◆緊固件、銘牌等均為不銹鋼。
