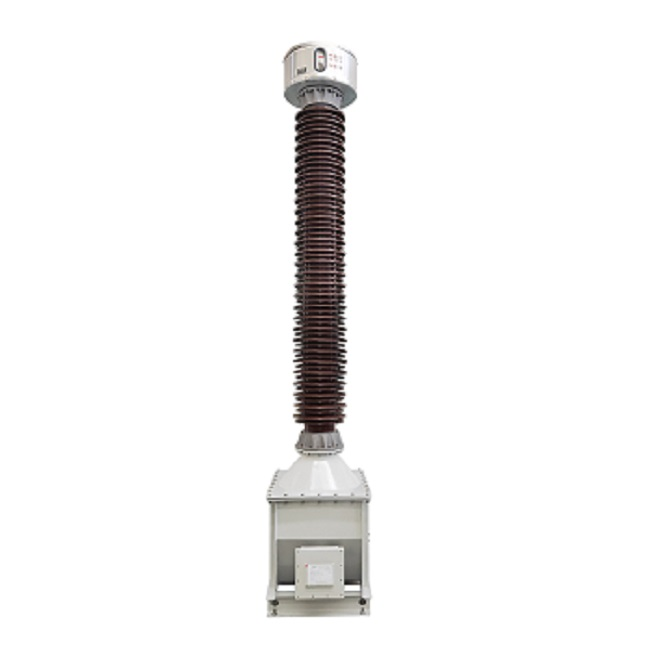

220kV 油浸電磁式單級電壓互感器

產品描述

產品用途

戶外單相油浸電磁式電壓互感器，在66～220kV，50或60Hz電力系統作電壓、電能測量和繼電保護用。

結構特點

◆產品為單級式絕緣結構，引線由多個電容屏組成保證電場均勻，其主絕緣主要由高壓電纜紙卷繞構成，經真空干燥后浸于變壓器油中。絕緣性能穩定、可靠，運行經驗豐富，使用壽命長，維護便利。

◆變壓器油的流動性好，利于產品散熱，對于因氣泡、灰塵等引起的局部放電故障具有自熄能力。

◆本型產品具有三個二次繞組，其中測量繞組和保護繞組分開。

◆產品頂部裝有不銹鋼金屬膨脹器，使產品處于全密封狀態，防止變壓器油及絕緣紙受潮，延長了產品使用壽命，并且在金屬膨脹器上設置有油位視察窗，可以很方便地觀察到油位的變化。

◆產品底部裝有多功能放油閥，使得取油樣、放油、補油更為便利。

◆本產品所有絕緣件全部為環保材料。

◆二次接線板采用環氧樹脂澆注結構，密封性能更加可靠。

◆產品底座等外漏鋼件采用噴塑和熱鍍鋅兩種防腐工藝，美觀且防腐性能好。

◆緊固件、銘牌等均為不銹鋼。
