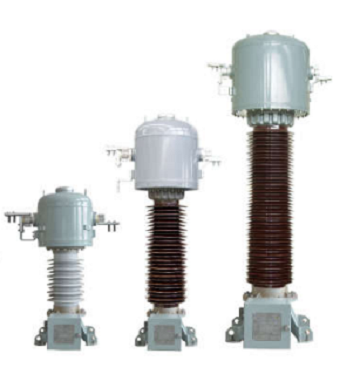

35kV SF6 氣體電流互感器

產品描述

產品用途

◆本產品是供35～220kV，50或60Hz電力系統作電流、電能測量和繼電保護用的戶外單相SF6氣體絕緣倒立式電流互感器。

遵循標準

◆IEC 61869-1; IEC 61869-2

◆GB 20840.1; GB 20840.2

使用環境條件

◆環境溫度：-30～+45℃

◆海拔高度：≤1000m（超過1000m,可按用戶要求另行制造）

◆污穢等級：Ⅱ、Ⅲ、Ⅳ

結構特點

◆本型產品為SF6氣體絕緣倒立式結構。一次繞組為貫穿式導電桿結構，最大熱穩定電流值達63kA/3s(一次繞組串聯時)

◆上部殼體為鋁合金焊接后加工而成，頂部裝有金屬防爆片，如果內部發生火花放電，在內部壓力增長到0.85Mpa后，爆破片迅速釋放壓力，提高了產品的安全性，無爆炸的危險。

◆二次繞組用有機材料澆注于鋁制屏蔽罩內，二次回路不會(huì )因絕緣擊穿而受到電襲擊。電極結構經優化設計，改善了產品內、外電場分布，絕緣性能優異。

◆外絕緣采用優化設計使內外電場均勻無放電，提供兩種型式供用戶選擇：

1.復合絕緣子

2.高強度瓷套

◆底座上裝有密度表，可顯示互感器內部的氣體壓力（顯示值自動轉化為20℃時的內部氣體壓力）及密度，當互感器內部壓力降到報警壓力時提供信號，要求補氣。

◆密封膠圈采用SF6氣體專用材料，適用于高低溫變化及環境溫度嚴酷的地區，年泄露率小于0.5%。

◆本產品所有絕緣件全部為環保材料。

◆產品底部裝有多功能放油閥，使得取油樣、放油更為便利。

◆底座、接線盒等外漏鋼件采用噴塑和熱鍍鋅兩種防腐工藝，美觀且防腐性能好
